Filter Air Purification System for Built-up Welding Machine
Home > Products > Flexible Air Duct Hose > Filter Air Purification System for Built-up Welding Machine

Filter Air Purification System for Built-up Welding Machine


  • Filter Air Purification System for Built-up Welding Machine
  • Filter Air Purification System for Built-up Welding Machine
  • Filter Air Purification System for Built-up Welding Machine
  • Filter Air Purification System for Built-up Welding Machine

Filter Air Purification System for Built-up Welding Machine

    Payment Type: L/C,T/T,D/P,Paypal
    Terms of Trade: FOB,CFR,CIF,EXW,CIP
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: Box
    Productivity: 100sets/Month
    Brand: Moland
    Transportation: Ocean,Land
    Place of Origin: Jinan City, Shandong Province, China
    Supply Ability: 100sets/Month
    Certificate: CE, ISO9001,ISO14001
    HS Code: 8421399090
    Port: Qingdao

Product Description

Based on the high temperature property of surfacing welding, the system components include pipeline, powerful fan, dust collection device, filter element device and control device. One side of the high temperature resistant hose is connected with the air duct fixed on the cross arm, and the other side is connected to the main pipe, which does not affect the horizontal and longitudinal movement of the welding gun. The welding gun is installed with a high temperature resistant dust hood, which can collect the dust directly at the dust producing point without the diffusion of smoke and dust, so as to achieve the ideal dust collection effect.
Dust purifier
· Suitable for: welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and cutting materials to produce

Performance description
·Integral structure, beautiful appearance, small area
· Anti-suction device, make the effect of cleaning more thorough
· Power supply condition monitoring: alarm for broken phase overvoltage and undervoltage to prevent motor and electrical components from damage

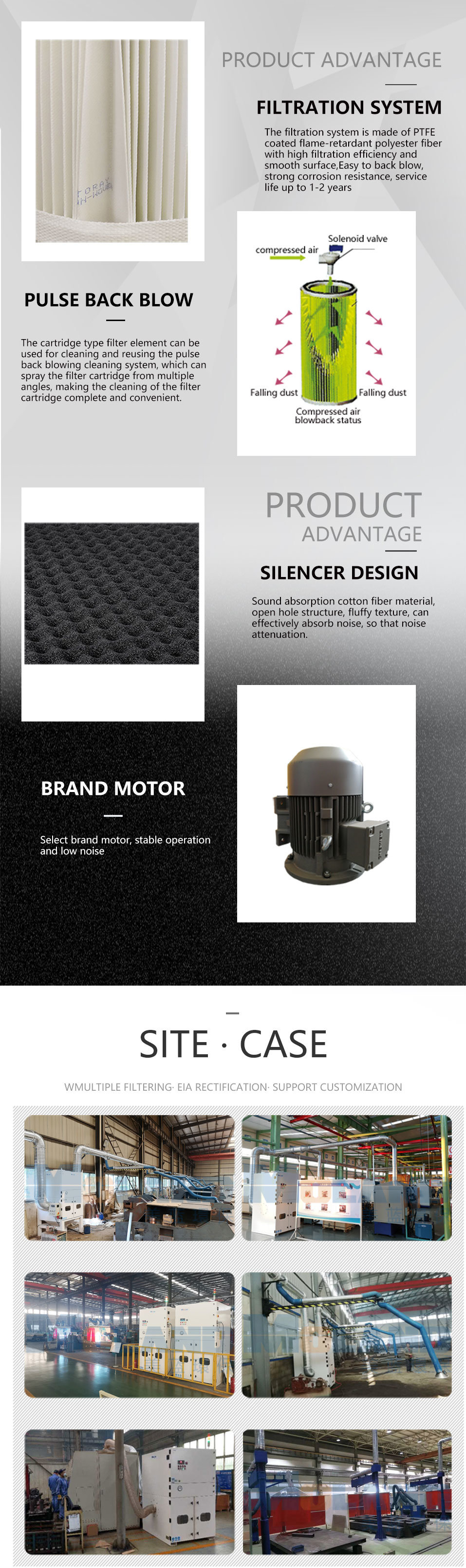

· Pneumatic condition monitoring: alarm of low pressure of gas source to prevent incomplete ash cleaning, differential gauge to visually show the use status of filter element, automatic pulse back blowing of high pressure difference
· Operation temperature monitoring: alarm system temperature is too high to prevent fire

Standard Configuration

·Filtration efficiency (> 99.9%) of main filter core (imported coated polyester fiber)
· Fault Phase Protection, Overload Protection, Air Pressure Monitoring and Temperature Monitoring Devices
· PLC Intelligent Control System
· Tricolor lamp
· Differential pressure gauge
· Observation window
· Spark trap (large particle dust pre-filter)

Spare parts

· Frequency conversion system
· IO port (remote control)
· Explosion proof configuration
· Universal Flexible Arm
· Suction duct
· Ash bucket

Recommended working condition
· Welding workstation
· Artificial Welding Station
· Plasma cutting and laser cutting
· Continuous working condition with large workload


Movable
Model MLWF280S MLWF300A MLWF350 MLWF400
Power 2.2kw 2.2kw 3.0kw 3.0kw
Voltage 220/380/415V 50/60 Hz
Air Volume 2500-2800m³/h 2800-3200m³/h 3000-3500m³/h 3500-4500m³/h
Accuracy 0.3μm
Filter material PTFE Cartridge Filter
Filter Area 10m² 20m² 20m² 40m²
Filter Size ∅325*660mm (1 branches) ∅325*660mm (2 branches) ∅325*660mm (2 branches) ∅325*660mm (4 branches)
Cleaning Automatic Dedusting
Noise 75dBA
Size 630×650×1760mm 840×800×1850mm 840×800×1850mm 960×985×2080mm
Weight 230kg 300kg 310kg 320kg



Stationary
Model MLWF500-6T MLWF500-9T MLWF800 MLWF800-Ash Bucket
Power 5.5kw 5.5kw 7.5kw 7.5kw
Voltage 220/380/415V 50/60 Hz
Air Volume 5000-7000m³/h 5000-7000m³/h 7000-10500m³/h 7000-10500m³/h
Accuracy 0.3μm
Filter material PTFE Cartridge Filter
Filter Area 60m² 90m² 108m² 108m²
Filter Size ∅325*660mm (6 branches) ∅325*660mm (9 branches) ∅325*860mm (9 branches) ∅325*860mm (9 branches)
Cleaning Automatic Dedusting
Noise 75dBA
Size 1240×1130×2200mm 1240×1470×2350mm 1240×1470×2550mm 1240×1470×2960mm
Weight 660kg 800kg 980kg 980kg




Model MLWF1000 MLWF1500 MLWF2000 MLWF3000
Power 11kw 15kw 22kw 37kw
Voltage 220/380/415V 50/60 Hz
Air Volume 12000m³/h 17000m³/h 22000m³/h 35000m³/h
Accuracy 0.3μm
Filter material PTFE Cartridge Filter
Filter Area 145m² 145m² 195m² 290m²
Filter Size 325*660mm (18 branches) 325*660mm (18 branches) 325*860mm (24 branches) 325*860mm (36 branches)
Cleaning Automatic Dedusting
Noise 75dBA
Size 2750×1550×2800mm 2750×1550×2800mm 1955×1550×2800mm 3000×1550×2800mm
Weight 1600kg 1700kg 1300kg 1600kg








Filter Air Purification System

Industrial Filter Air Purification System with Ce for Built-up Welding/Cutting Machine



Jinan Moland Environmental Tech Co.,Ltd



Established in 2016, Jinan Moland Environmental Tech Co., Ltd. is located in No. 11889 Jingshixi Road, Jinan Economic Development Zone. It is an environmental protection technology enterprise specializing in research, development, manufacture and sale of efficient smoke purification system.

The company is committed to reducing the environmental impact of production process, protecting workers from harmful gases and dust, and creating a cleaner working environment. At present, the company′s products have been successfully applied in automobile, railway, construction machinery, marine engineering, aviation and other mechanical processing industries, as well as new materials, grain, wood, recycled resources processing and other industries. The company has passed the ISO 9001 quality management system certification, obtained the certification certificate of China Environmental Protection Products issued by China Environmental Protection Industry Association, and CE certification of EU. It also has a number of invention patents, utility model patents and appearance patents. Through continuous R&D and innovation, many products of the company have reached the international leading level.

Moland′s environmental services cover the whole process from project design, product manufacturing to installation, commissioning and after-sales service. We will provide you with the most professional governance program and the best quality service.
